Preface
Different from the traditional plate or tubular sterilization equipment, the aseptic tubular sterilizer is a complete set of equipment specially designed for neutral or acidic liquid food with long shelf life. Its basic principle is to heat the material to 135 ~ 140 ℃ through high-temperature hot water for 4 ~ 10s, kill all bacterial spores, make the material reach the commercial aseptic state, and carry out aseptic filling after reducing to normal temperature.
Technical Parameter
.png)

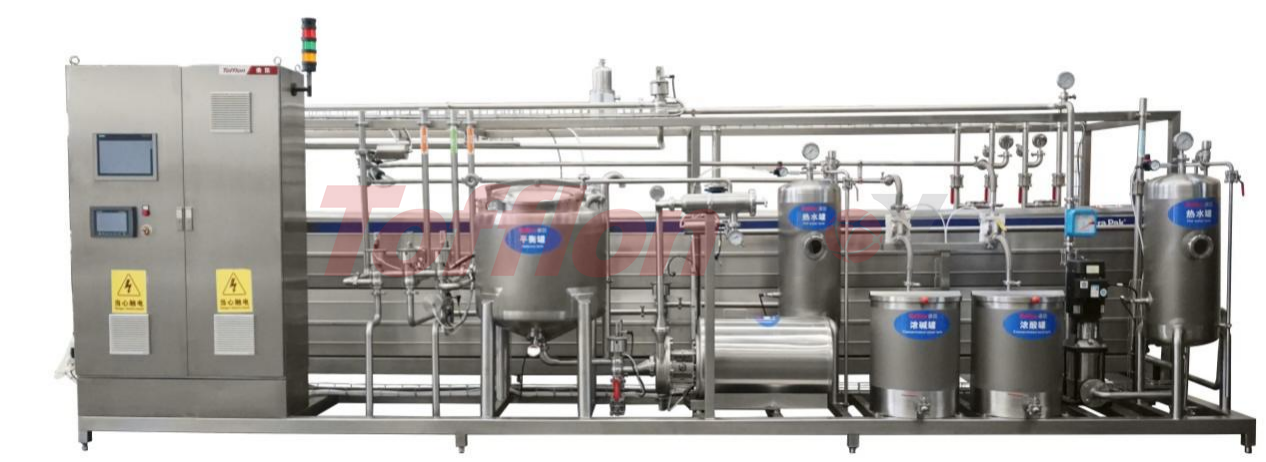

It is composed of tubular heat exchanger, balance tank, sanitary pump, hot water device, frame and control unit. The materials to be sterilized first pass through the balance tank, enter the heat exchanger through the centrifugal sanitary pump, pass through the homogenization preheating section, homogenization, the first heating section (optional), the first insulation section (optional), the second heating section, the second insulation section, heat recovery section, cooling section, and finally enter the packaging machine for filling;
●Production capacity: 0.5-30 T / h (customized according to demand)
●Sterilization temperature: 95-140 ℃
●Sterilization time: 4-30s (adjusted according to different materials)
Equipment Characteristics
.png)
?High product quality
All parts in contact with materials are made of SUS316L material, and the material heat exchanger adopts full-automatic welding;
?High recovery and low energy consumption
The maximum heat recovery efficiency can reach 82%;
?Super long working time
Up to 14 hours of continuous production (taking pure milk as an example, 8 hours of continuous production + 6 hours of continuous production after aseptic cleaning);
?Precise control system
The precision deviation of sterilization temperature shall be at least ± 0.5 ℃;
?Perfect safety guarantee system
Realize the differential pressure control of all materials and media (optional), and automatically record and monitor the temperature, flow, time, differential pressure, back pressure, CIP, sip, etc., so as to effectively ensure the safety of products;
?Convenient after-sales maintenance
The equipment is equipped with remote maintenance module as standard, which can cooperate with users for remote debugging, training, maintenance, etc. anytime and anywhere.
Application Fields
●It is suitable for ultra-high temperature sterilization of milk, fruit juice, prepared milk, lactobacillus beverage, tea beverage, plant protein beverage, etc.
●It is suitable for heat treatment of other high viscosity liquid foods, such as ultra-high temperature sterilization of ice cream pulp, margarine, milk cover, oligofructose, erythritol, etc.It is suitable for ultra-high temperature sterilization of milk, fruit juice, prepared milk, lactobacillus beverage, tea beverage, plant protein beverage, etc.
